NEW QUESTION # 18
Consider the exhibit which shows an EPT Power ManagementReport for an ingress amplifier.
What is the available output optical power range?

• A. -0.6 to 1.72 dB
• B. -0.02 to 1.14 dB
• C. 0.56 to 1.14 dB
• D. 0.56 to 1.72 dB

Answer: A

Explanation:
Explanation
The available output optical power range is the difference between the maximum gain and the minimum gain range of the ingress amplifier. According to the EPT Power Management Report, the maximum gain is 25.7 dB and the minimum gain range is 14 dB. Therefore, the available output optical power range is 25.7 - 14 =
11.7 dB. To convert this to a logarithmic scale, we use the formula 10^(x/10), where x is the value in dB.
Therefore, the available output optical power range in logarithmic scale is 10^(11.7/10) - 10^(14/10) = 14.68 -
25.12 = -0.6 to 1.72dB. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, EPT Power Management Report | Nokia

NEW QUESTION # 19
Suppose a unidirectional amplifier has been plugged into slot 1/13. Which command should the user enter to retrieve the OSC pluggable module type?

• A. show interface 1/13/OSC
• B. show interface 1/13/OSCSFP detail
• C. show interface 1/13/OSCSFP
• D. show interface 1/13/OSC detail

Answer: B

Explanation:
Explanation
The command that the user should enter to retrieve the OSC pluggable module type is show interface
1/13/OSCSFP detail. This command will display detailed information about the OSC interface on slot 1/13, including the type of pluggable module that is installed in it. The pluggable module type can be either SFP or SFP+, depending on the speed and distance requirements of the OSC link. The command will also show other parameters, such as wavelength, frequency, transmit power, receive power, and status. The other commands are incorrect because they either do not show the pluggable module type or have invalid syntax. References: Nokia Optical Diagnostics and Troubleshooting Course, OSFP OCTAL SMALL FORM FACTOR PLUGGABLE MODULE

NEW QUESTION # 20
Consider the exhibit.

Which type of loopback is applied?

• A. Client port terminal Ioopback
• B. Line port terminal Ioopback
• C. Line port facility Ioopback
• D. Client port facility loopback

Answer: A

Explanation:
Explanation
The exhibit shows a diagram of an OT module with a client port and a DWDM port. The client port is looped back to itself with an OEO (Optical-Electrical-Optical) device. This means that the signal received by the client port is converted to an electrical signal, then back to an optical signal, and then transmitted back to the same port. This type of loopback is called a client portterminal loopback. It is used to test the functionality of the client port without involving the DWDM port or any other network element4. A client port facility loopback would involve looping back the signal from the DWDM port to the client port. A line port facility loopback would involve looping back the signal from another OT module or network element to the DWDM port. A line port terminal loopback would involve looping back the signal from the DWDM port to itself5. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Loopback - Wikipedia

NEW QUESTION # 21
Consider the exhibit. A single directional fiber cut is occurring between two amplifiers in bidirectional configuration. Which node(s) will report a "LD Input LOS" alarm?

• A. Node A and Node B
• B. Node B only
• C. Node C only
• D. Node A only

Answer: B

Explanation:
Explanation
The exhibit shows a diagram of a network of nodes and edges, where a single directional fiber cut is occurring between two amplifiers in bidirectional configuration. The node that will report a "LD Input LOS" alarm is node B only. A "LD Input LOS" alarm indicates that the input signal to the laser diode (LD) of an amplifier is lost or below the threshold3. In this case, node B will not receive any signal from node A due to the fiber cut, and will generate this alarm. Node A will not report this alarm, because it can still receive a signal from node C through the other fiber. Node C will not report this alarm either, because it is not directly affected by the fiber cut between node A and node B. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Troubleshooting Guide for Synchronous Digital Hierarchy - Cisco

NEW QUESTION # 22
Suppose a "Channel Absent" alarm is reported on an 1830 PSS node. What is the recommended order for the following troubleshooting steps?

• A. 1. Retrieve the channel power trace.
  2. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
  3. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
  4. Check observed Wave Keys against expected Wave Keys.
• B. 1. Check observed Wave Keys against expected Wave Keys.
  2. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
  3. Retrieve the channel power trace.
  4. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
• C. 1. Retrieve the cross-connection (XC) details and see what virave Keys should be present.
  2. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
  3. Retrieve the channel power trace.
  4. Check observed Wave Keys against expected Wave Keys.
• D. 1. Go to the suspected troubled node / card / port and look at Wave Keys (in / out).
  2. Retrieve the cross-connection (XC) details and see what Wave Keys should be present.
  3. Check observed Wave Keys against expected Wave Keys.
  4. Retrieve the channel power trace.

Answer: A

Explanation:
Explanation
The recommended order for the troubleshooting steps is B, as follows:
* Retrieve the channel power trace. This step is useful to identify the affected channel and its power level, as well as to check if there are any fluctuations or anomalies in the power trace that could indicate a channel absent issue1.
* Retrieve the cross-connection (XC) details and see what Wave Keys should be present. This step is necessary to verify which Wave Keys are expected to be present on the node, card, and port based on the XC configuration2. Wave Keys are unique identifiers for wavelength tracking that are encoded by Optical Transponders (OTs) into each service wavelength direction3.
* Go to the suspected troubled node / card / port and look at Wave Keys (in / out). This step is helpful to compare the observed Wave Keys with the expected Wave Keys, and to locate the source of the problem. If a Wave Key is missing or mismatched, it means that there is a channel absent issue on that node, card, or port4.
* Check observed Wave Keys against expected Wave Keys. This step is the final solution to resolve the issue and restore the normal operation of the node. The observed Wave Keys should match the expected Wave Keys based on the XC configuration. If not, the XC configuration should be corrected or the faulty node, card, or port should be replaced5. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia, Alcatel-Lucent 1830 PSS-8 and PSS-16 Photonic Service Switch

NEW QUESTION # 23
Suppose a network operator needs to configure the 10GbE client interface 1/7/C1 with a GFP-F encapsulation mode. Which command should be used?

• A. config interface 1/7/C1 encmode 10client gfp-f
• B. config encmode interface 1/7/C1 10client gfp-f
• C. config interface 1/7/C1 tenGige encmode gfp-f
• D. config encmode interface 1/7/C1 tenGige gfp-f

Answer: A

Explanation:
Explanation
The command that should be used to configure the 10GbE client interface 1/7/C1 with a GFP-F encapsulation mode is config interface 1/7/C1 encmode 10client gfp-f. This command will set the encapsulation mode of the interface to GFP-F, which is a frame-mapped generic framing procedure that encapsulates Ethernet frames with a GFP header. The command also specifies that the interface is a 10GbE client interface, which means that it supports 10 Gigabit Ethernet LAN signals. The other commands are incorrect because they either have invalid syntax or use incorrect parameters for the interface or the encapsulation mode. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide

NEW QUESTION # 24
What is the typical severity level of a "Loss of Signal" (LOS) alarm?

• A. Warning
• B. Critical
• C. Minor
• D. Major

Answer: B

Explanation:
Explanation
A "Loss of Signal" (LOS) alarm is a critical alarm that indicates that there is no or very bad signal at the physical interface. LOS alarm is also raised when the signal level drops below the threshold, at which a high bit error rate (BER) is predicted. LOS alarm can be caused by physical damage, power outage, or misconfiguration of the equipment. LOS alarm can affect the service availability and performance of the optical network. Therefore, it is typically assigned a critical severity level, which means that it requires immediate attention and resolution2. Other severity levels are major, minor, and warning, which indicate different degrees of impact and urgency of the alarms. References: Troubleshooting Guide for Cisco NCS
1002, T1: A Survival Guide, M-series SONET/SDH alarms and troubleshooting tips

NEW QUESTION # 25
Which of the following statements about the Wavelength Tracker (WT) capability is TRUE?

• A. WT uses a unique identifier based on a pair of numbers encoded by Raman amplifiers into each service wavelength direction.
• B. WT uses a unique identifier based on a pair of numbers encoded by Optical Transponders OTs) into each service wavelength direction.
• C. Wave Keys are originated by optical amplifiers.
• D. WT is compatible with other vendor domains, but the user must make sure that Wave Keys are unique on the crossed domains.

Answer: B

Explanation:
Explanation
The statement that WT uses a unique identifier based on a pair of numbers encoded by Optical Transponders (OTs) into each service wavelength direction is TRUE. WT is a feature of the 1830 PSS that allows for automatic identification and tracking of wavelengths across different network elements and domains. WT uses Wave Keys, which are unique identifiers composed of two numbers: a Wave Key ID and a Wave Key Code. The Wave Key ID identifies the OT that generates the wavelength, while the Wave Key Code identifies the wavelength itself within a given OT6. The Wave Keys are encoded by OTs into each service wavelength direction using phase modulation, and can be decoded by other OTs or amplifiers that have WT capability.
WT enables various applications and benefits, such as simplified commissioning, automated wavelength routing, enhanced fault localization, and improved network security. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide - Nokia, Alcatel-Lucent 1830 PSS-8 and PSS-16 Photonic Service Switch

NEW QUESTION # 26
Which of the following statements best describes the Forward Error Correction (FEC) technique?

• A. FEC enables errors to be detected and corrected without retransmission. This technique is effective only above a specified OSNR threshold.
• B. FEC enables errors to be detected and data to be retransmitted. This technique is effective only above a specified OSNR threshold.
• C. FEC enables errors to be detected and data to be retransmitted. This technique is effective only below a specified OSNR threshold.
• D. FEC enables errors to be detected and corrected without retransmission. This technique is effective only below a specified OSNR threshold.

Answer: A

Explanation:
Explanation
The statement that best describes the Forward Error Correction (FEC) technique is C. FEC is a technique used in digital communication to improve the accuracy and reliability of data transmission. By adding redundant information to the transmitted data, FEC enables the receiver to detect and correct errors without retransmission or other error correction techniques11. FEC is effective only above a specified OSNR threshold, which is the minimum optical signal-to-noise ratio required for error-free transmission with FEC enabled. If the OSNR falls below this threshold, FEC cannot correct all errors and data quality degrades significantly. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical User Guide
- Nokia, Forward Error Correction (FEC) - Online Tutorials Library

NEW QUESTION # 27

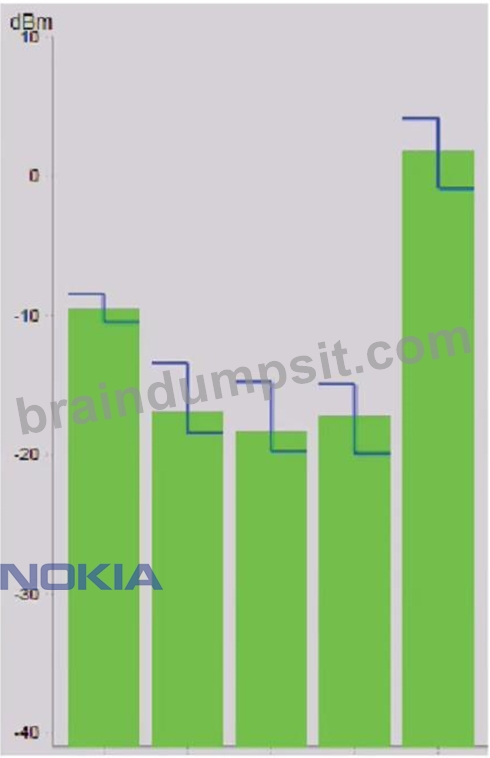

Consider the exhibit. What do the different colored green columns indicate?

• A. Optical power levels measured at different interfaces throughout the optical path of a single wavelength.
• B. Optical power levels measured for multiple wavelengths against a specific interface.
• C. The average optical power levels measured for multiple wavelengths throughout their shared optical path.
• D. Optical power levels measured multiple times against a specific interface, at 24-hour intervals for the same wavelength.

Answer: A

Explanation:
Explanation
The exhibit shows a graph of optical power levels measured at different interfaces throughout the optical path of a single wavelength. The different colored green columns indicate the optical power levels at different points along the optical path, such as the transmitter, the receiver, and the amplifiers. The graph also shows the expected power levels and the allowed deviation range for each point. The graph can be used to monitor the performance and quality of the optical signal and to identify any potential issues or anomalies. The other options are incorrect because they either describe a different type of graph or do not match the exhibit. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide

NEW QUESTION # 28
Which of the following statements about optical power vs amplification stages is TRUE?

• A. The Optical Supervisory Channel (OSC) is amplified when passing through all amplifier types, except for Raman which is not based on EDFA.
• B. When channels pass through amplifiers, all of them always experience a similar amplification.
• C. Ingress amplifiers are always more powerful [than egress amplifiers, to reduce the impact of non-linear effects.
• D. When multiple channels pass through a shared port (for example, an amplifier line interface), the total aggregated power reflects the number of channels currently present.

Answer: D

Explanation:
Explanation
The statement that when multiple channels pass through a shared port (for example, an amplifier line interface), the total aggregated power reflects the number of channels currently present is TRUE. This means that the more channels are present, the higher the total output power will be, and vice versa. This is because each channel contributes to the total power by its own power level, and the amplifier tries to maintain a constant gain for each channel2. Therefore, the total output power depends on both the input power and the number of channels3. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia, Optical amplifiers, explained by RP; optical amplification, Amplifier chains, explained by RP; amplifier stages, preamplifier ...

NEW QUESTION # 29
Which of the following Performance Measurement (PM) type is NOT typically retrieved at an Optical Transponder (OT) line interface?

• A. Digital Wrapper (DW)
• B. Ethernet collision counters
• C. Forward Error Correction - Errors Counted (FEC-EC)
• D. Optical Power Received (OPR)

Answer: B

Explanation:
Explanation
Performance Measurement (PM) is a feature that collects and reports various statistics related to the performance of an optical network element. PM data can be retrieved at different levels, such as Optical Channel (OCh), Optical Channel Data Unit (ODU), Optical Channel Transport Unit (OTU), and Ethernet. An Optical Transponder (OT) is a device that converts an electrical signal into an optical signal and vice versa. An OT has two interfaces: a client interface and a line interface. The client interface connects to the service provider network, while the line interface connects to the optical transport network. At the OT line interface, PM data can be retrieved for the OCh, ODU, OTU, and Digital Wrapper (DW) levels. The DW is a layer that encapsulates the client signal and provides overhead information for monitoring and management purposes.
Ethernet collision counters are not typically retrieved at the OT line interface, as they are related to the Ethernet level, which is usually monitored at the client interface. References: Nokia Optical Diagnostics and Troubleshooting Course, Nokia 1830 PSS-32 and PSS-16 Photonic Service Switch Release 8.0 Performance Monitoring Reference Guide

NEW QUESTION # 30
Suppose a Raman amplifier has been plugged into slot 1/8. Which command should the user enter to retrieve the total optical power detected at the ingress interface?

• A. show interface 1/8/UNEIN detail
• B. show interface 1/8 power
• C. show interface 1/8 opin
• D. show Interface 1/8/LINEIN

Answer: A

Explanation:
Explanation
The command show interface 1/8/UNEIN detail is used to retrieve the total optical power detected at the ingress interface of a Raman amplifier. This command displays detailed information about the UNEIN interface, which is the unidirectional east input interface of the Raman amplifier. The total optical power detected at the UNEIN interface is shown as Input Power (dBm) in the output of this command1. References : Nokia Optical Diagnostics and Troubleshooting Course | Nokia

NEW QUESTION # 31
Consider the exhibit. Given the following power readings, what is the calculated span loss from Node A to Node B?

• A. 2.5
• B. 11.5
• C. 8.0
• D. 1.5

Answer: C

Explanation:
Explanation
The exhibit shows a diagram of a network with two nodes, Node A and Node B, connected by a fiber span.
The diagram also shows the power readings at different points of the span. The calculated span loss from Node A to Node B is the difference between the output power at Node A and the input power at Node B. According to the diagram, the output power at Node A is +3.5 dBm and the input power at Node B is -4.5 dBm.
Therefore, the span loss from Node A to Node B is 3.5 - (-4.5) = 8.0 dB.

NEW QUESTION # 32
Which of the following statements best describes the output of the CLI command: show wavekey wtmonitor
1/6/LINE summary?

• A. A list of all channels detected against the selected interface, including Wave Keys pair, channel status, expected and measured power, allowed deviation, and tolerance.
• B. A list of all channels on this interface for which any Wave Keys pair is being received.
• C. A list of all channels detected against the selected interface (in and out); it shows if a Wave Keys pair is expected, if a Wave Keys pair is received, and if the received Wave Keys pair is unexpected.
• D. A list of the unexpected channels detected against the selected interface.

Answer: C

Explanation:
Explanation
The command show wavekey wtmonitor 1/6/LINE summary displays a list of all channels detected against the selected interface (in and out); it shows if a Wave Keys pair is expected, if a Wave Keys pair is received, and if the received Wave Keys pair is unexpected. A Wave Keys pair is a pair of unique identifiers that are transmitted along with an optical channel to provide channel identification and monitoring functions. The command can be used to verify the presence and correctness of the Wave Keys pairs on an interface and to detect any mismatch or misconfiguration. The other options are incorrect because they either describe a different command or provide incorrect information. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide

NEW QUESTION # 33
Consider the exhibit. A single directional fiber cut is occurring between two amplifiers in unidirectional configuration with Raman pump.
Multiple services are crossing the affected span.
Which node(s) will report an Incoming Payload LOS" alarm?

• A. Neither Node A nor Node C.
• B. Both Node A and Node C
• C. No node, as a Raman pump is used in Node A.
• D. Node C only.

Answer: B

Explanation:
Explanation
A single directional fiber cut is occurring between two amplifiers in unidirectional configuration with Raman pump. Multiple services are crossing the affected span. The node(s) that will report an Incoming Payload LOS alarm are both Node A and Node C. An Incoming Payload LOS alarm indicates that there is no or very low signal at the input port of a node. In the exhibit, Node A will report this alarm because it will not receive any signal from Node B due to the fiber cut. Node C will also report this alarm because it will not receive any signal from Node D due to the fiber cut. The Raman pump in Node A does not prevent this alarm, as it only amplifies the signal in the forward direction, not the backward direction. The other options are incorrect because they either ignore one of the nodes that will report the alarm or assume that the Raman pump has an effect on the backward direction. References: Nokia Optical Diagnostics and Troubleshooting Course, OAM and Diagnostics Guide

NEW QUESTION # 34
......
